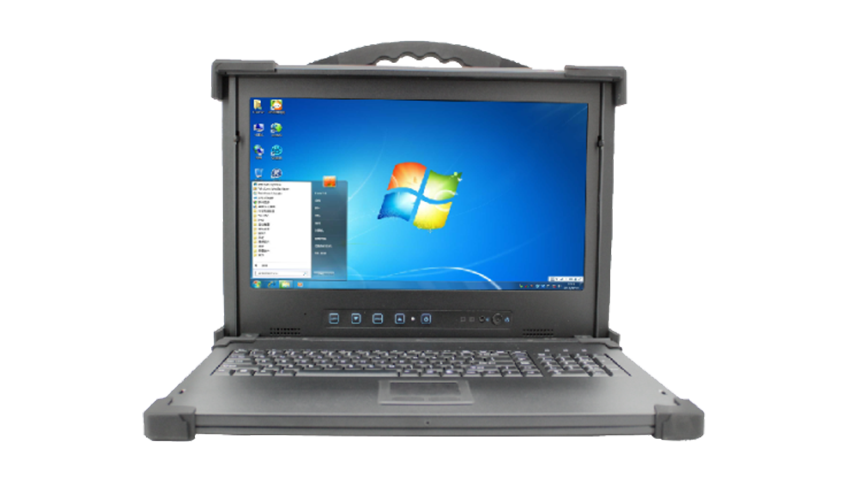

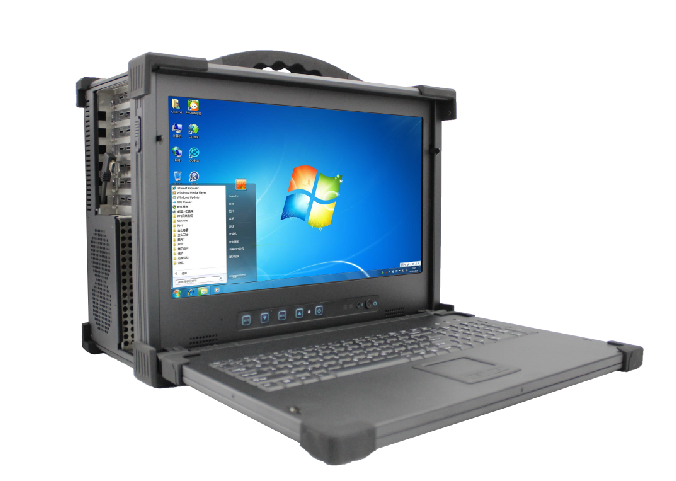

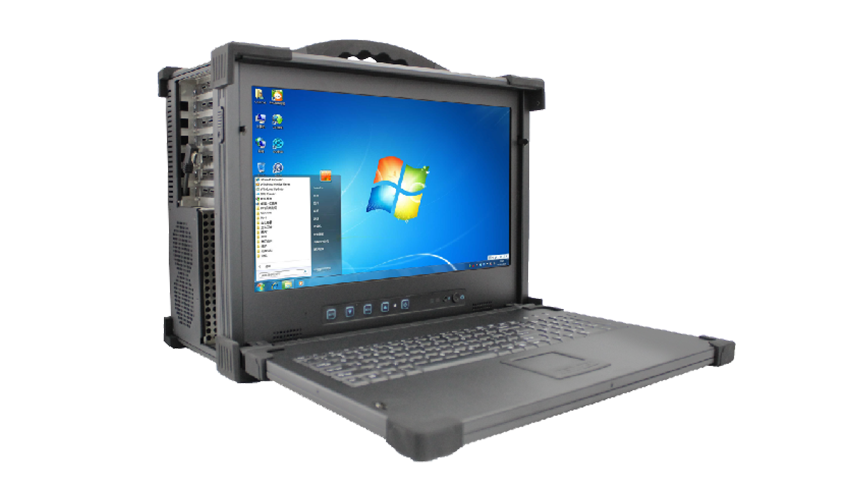

B173-S downward-flipping portable server_Dongguan Lingchuang Intelligent Technology Co., Ltd.

■ All-aluminum alloy design

■ 17.3"LCD，1920*1080

■ Two XEON 6240R processors

■ 256G memory

■ There are 16 slots for 2.5-inch hard drives

■ ATX power supply

■ Application field: Military measurement and control on-site testing, public security, national defense industry

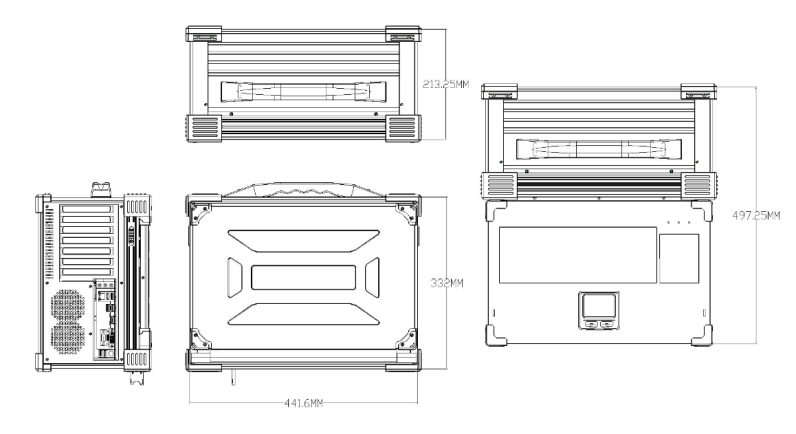

Development drawing and dimension drawing


Expansion diagram	Dimension drawing

Product configuration

CPU	Two XEON 6240R processors, 24 cores, 48 threads, with a main frequency of 2.4GHz
Chipset	C621
Memory	256G ECC RDIMM memory, maximum 4T memory
Hard disk bit	16 2.5-inch hard disk bays
Hard disk	Four 4T solid-state drives
Display screen	17.3"LCD，1920*1080
RAID card	2GB cache, supporting RAID 0/1/5, etc
Keyboard and mouse	Integrated touchpad +100 industrial keyboard
Key press	One power-on button, one reset button, and one set of OSD keys
Keyboard indicator light	One digital indicator light, one case indicator light, and one function indicator light
I/O interface	Two 10-gigabit optical ports (including optical modules), six gigabit network ports, one VGA port, one serial port, and four USB interfaces
Power supply	ATX power supply
Operating system	Supports mainstream server operating systems including CentOS and Windows Server2019;
Weight	<20KG
Size	441.6332213.3MM, excluding (handle, corner guards, foot pads)
Working temperature	0℃-45℃
Storage temperature	-40℃-60℃
Working humidity	10%-90%
